d(max) 32mm ; L 130mm
| Model No. | Series | 中 d max (mm) | L(mm) |
| 540-320 | B2B | 32 | 130 |
| 540-421 | C3B | 32 | 160 |
| 540-422 | C3B | 40 | 160 |
| 540-520 | D1B | 50 | 180 |
| 540-521 | D1B | 63 | 180 |

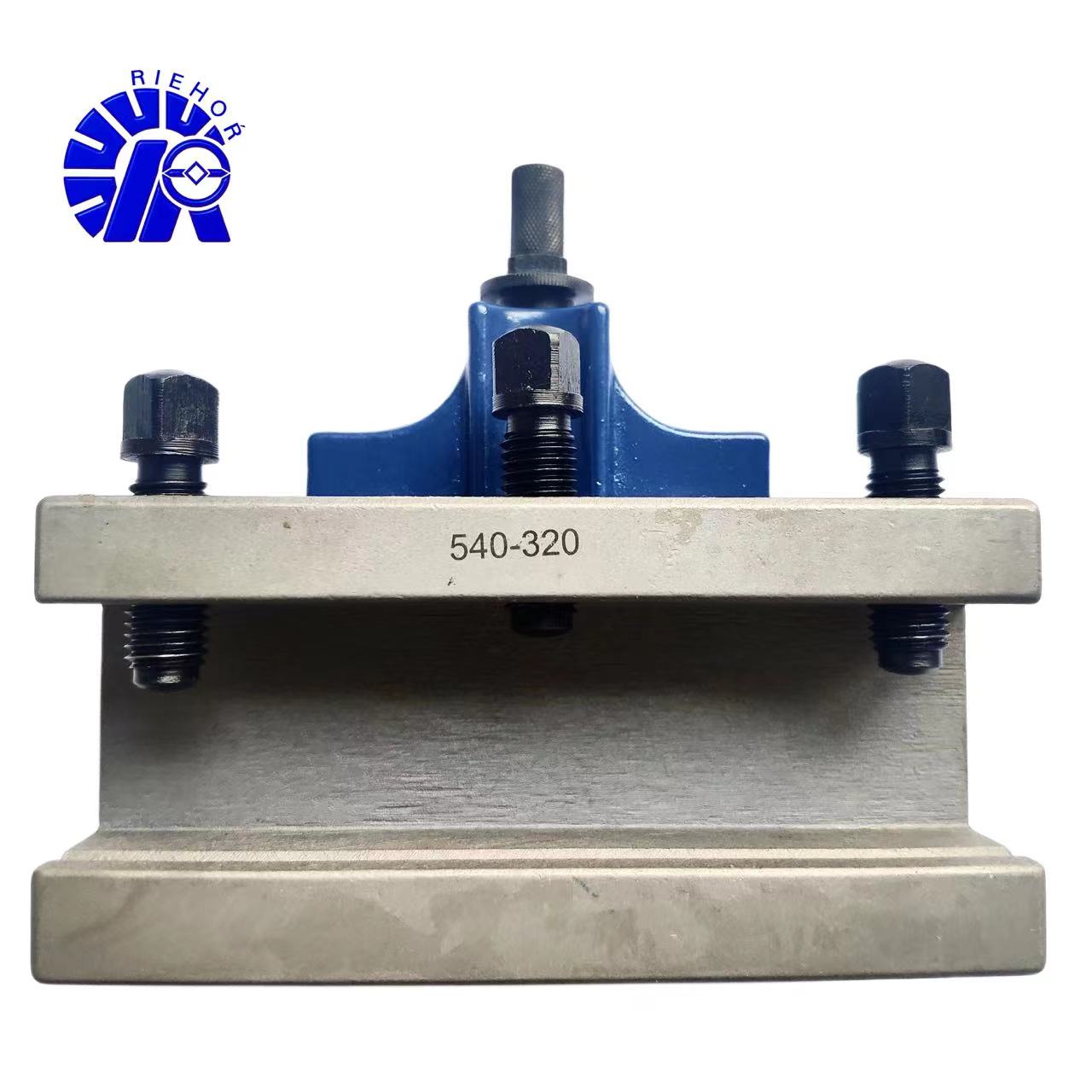

The 540-320 Quick Change Tool Post from RuiHan is an indispensable accessory for any lathe operator aiming to improve precision, streamline operations, and boost productivity. Designed with advanced functionality and robust construction, this tool post ensures rapid and efficient tool changes, reducing downtime while maintaining accuracy. With its quick-change mechanism and precision engineering, it supports various lathe operations, from turning and milling to custom machining projects.
Proper mounting is crucial for maximizing the performance of the 540-320 Quick Change Tool Post.
Align the tool post at a right angle to the lathe faceplate.
Secure the tool post using two set pins and a clamping bolt.
Tighten the clamping bolt’s nut to lock the assembly securely in place.
This ensures the tool post and holders operate smoothly and maintain accurate alignment during machining.
540-320 40 Position Quick Change Tool Post
This tool post's innovative quick-change design allows operators to switch tools rapidly without disrupting the setup. This feature reduces cycle times and maximizes machining productivity.
Manufactured from high-quality, hardened, and ground steel, the 540-320 Quick Change Tool Post ensures long-lasting durability and reliable performance, even under heavy-duty operations.
The tool post offers 40 angular tool-bit positions, allowing for precise adjustments. This versatility is critical for maintaining tight tolerances and achieving superior finishes in machining tasks.
The eccentric clamping mechanism secures the tool holder firmly, preventing movement during operation. With repeat accuracy of 0.01mm, the tool post ensures consistent, high-precision results.
The 540-320 Quick Change Tool Post is designed for straightforward installation. Its profile-ground serrated body can be easily mounted using a clamping bolt, with minimal machining required to suit your lathe.
The 540-320 Quick Change Tool Post excels in various machining applications:
Streamline turning tasks by swiftly switching between different cutting tools without repositioning the lathe slides.
Achieve precise adjustments for milling and facing operations, enhancing the overall quality of your machining output.
For projects requiring tool versatility and rapid adjustments, the 540-320 Quick Change Tool Post is a game-changer.
Efficiency: Save time by switching tools from the top without moving longitudinal or traverse slides.
Adaptability: Compatible with multiple lathe models, offering flexibility for diverse machining setups.
Improved Performance: With its robust clamping and adjustment features, this tool post enhances the quality and precision of machining processes.
Investing in RuiHan 540-320 Quick Change Tool Post or our 40 Position Quick Change Tool Post is a strategic decision for any workshop seeking to improve machining efficiency. With its robust construction, quick-change capabilities, and precise adjustments, this tool post is the ultimate solution for streamlining operations. For more information or assistance with the 540-320 Quick Change Tool Post, contact us!
