  • HSK63F ER Collet Chuck

HSK63F ER Collet Chuck

HSK63F ER40 Collet Chuck Tool Holder HSK 63F Taper for Woodworking CNC Router Machines

Products Description

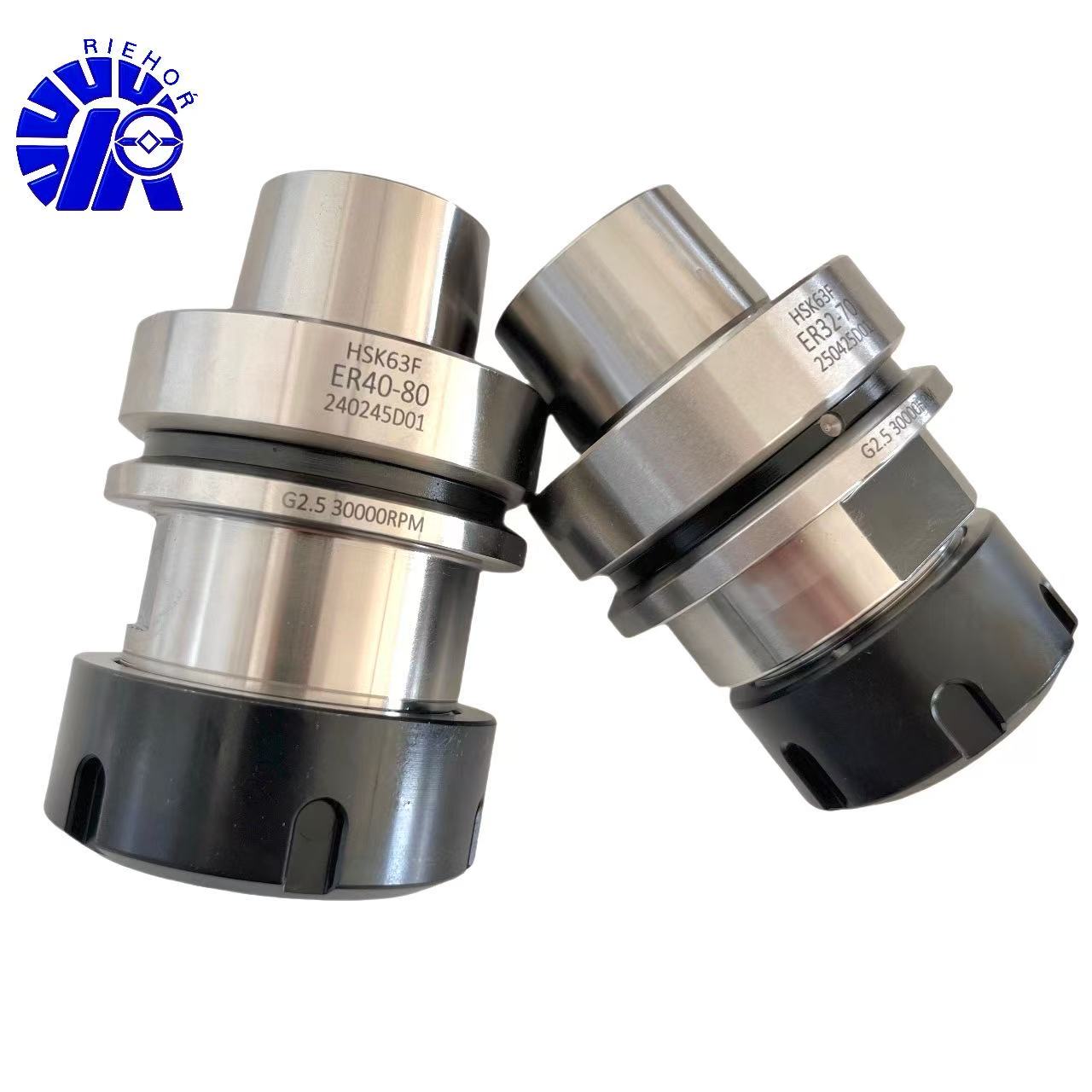

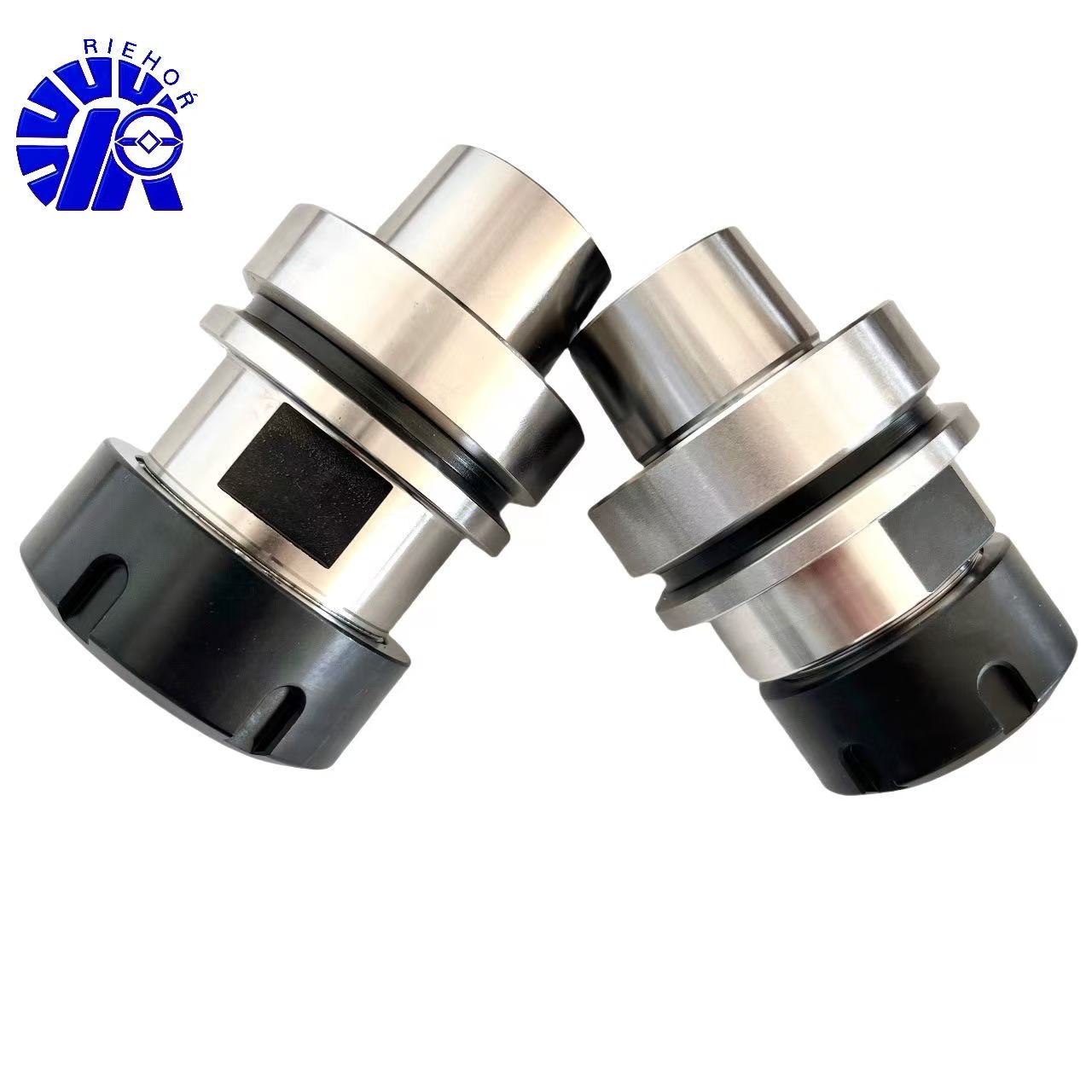

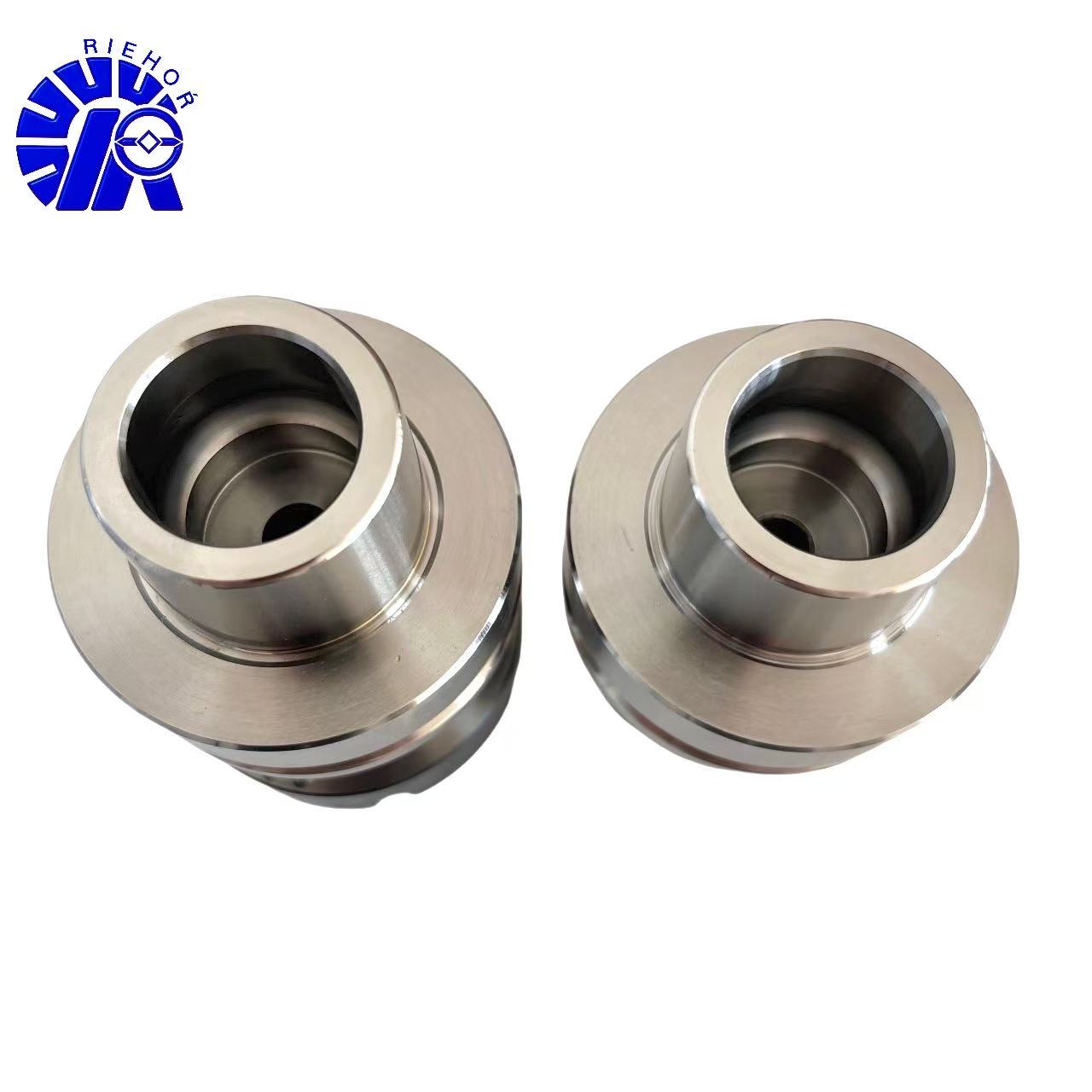

HSK63F ER Collet Chuck

This HSK63F toolholders is fit with ER40 collet and nut for CNC Routers. HSK 63 F style tool holder is the most popular in woodworking machinery. HSK63 ER Collet Chuck Tool Holder is widely used in the cutting field.  ER40 collets have a max tool shank diameter of up to a 1″ tool shank diameter.

The HSK F63 ER Collet Chucks are designed for new higher speed cutting tools and allow high feeds and speeds to be achieved. The HSK F tool holders are easy to found on CNC machines such as SCM, Biesse, Essetre, Masterwood, Morbidelli, Bulleri, Sicar, Weeke, Busellato, Dubus, Homag, Ima, Felder, Eima, Uniteam, Routech , and Chinese CNC machining centers.

Balanced to 30,000 RPM at G2.5 specifications

Material: 20CrMoTi

Precision: within 0.003mm

In accordance with DIN69893
Balanced Collet Nuts are included with HSK F taper toolholders
Availability: In Stock
Gauge Length: A=80mm
Collet Type: ER40, sold separately

HSK63F ER Collet Chuck

Tags: HSK63F ER collet chuck HSK63F-ER32-70HSK63F-ER40-80
